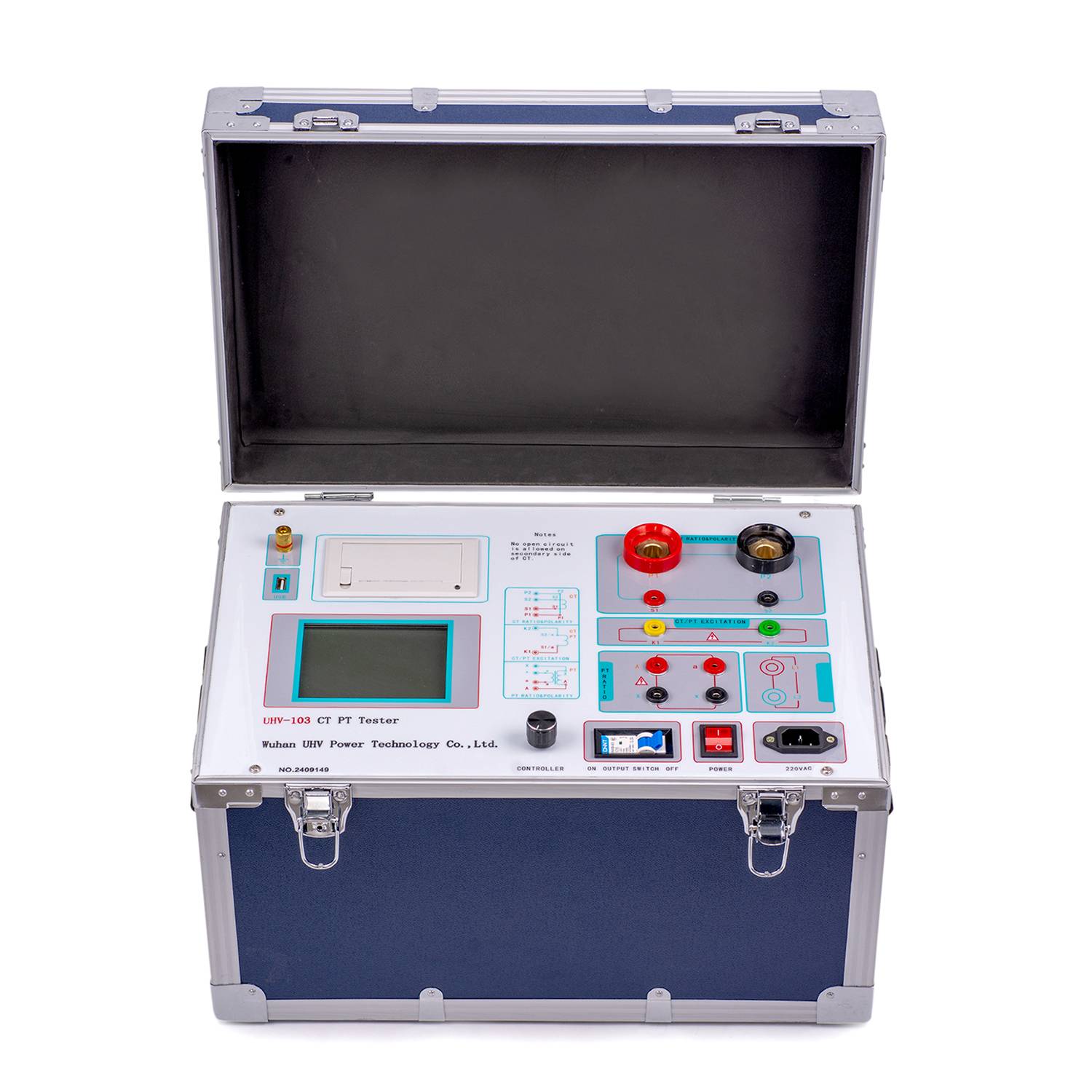

In the world of power equipment, each component has its own unique "personality", which is largely reflected in its "volt ampere characteristics". Imagine if we could have a tool that can clearly depict the "volt ampere characteristics" of a device like a physical examination? The answer is yes, this is the "volt ampere characteristic tester" we are going to talk about today.
What is volt ampere characteristic?
Simply put, the "volt ampere characteristic" is a graph that describes the relationship between the operating states of an electrical component (such as a transformer, transformer, motor, etc.) under different voltage (V) and current (A) conditions. It is like the "fingerprint" of a device, which can accurately reflect the internal structure, material characteristics, and potential defects of the device.
What are the factors that affect the volt ampere characteristics?
The properties of the material itself, such as the resistivity of the conductor and the dielectric constant of the insulating material, directly affect the volt ampere characteristics.
Working environment: Changes in external environment such as temperature and humidity may also have subtle effects on the volt ampere characteristics of equipment.
The internal structure of the equipment, including the number of turns of the coil, the material and size of the iron core, the integrity of the insulation, etc., all constitute the "skeleton" of the equipment and determine its "personality".
Manufacturing process: The precision of each step in the production process will leave traces on the volt ampere characteristics.
What tools can we use to 'understand' the volt ampere characteristics?
In addition to the volt ampere characteristic tester mentioned earlier, we can also use some auxiliary equipment, such as oscilloscopes, multimeters, and some professional analysis software. Wuhan UHV Power Technology Co., Ltd. provides very reliable technical support and solutions in this regard, and their products have a good reputation in the industry.
What is the volt ampere characteristic tester related to?
Voltage current characteristic testing is closely related to the detection and diagnosis of many power equipment:
Performance verification of equipment before leaving the factory: Ensure that the equipment meets the design requirements.
In operation status monitoring: timely detection of abnormal conditions such as equipment aging and damage.
Fault diagnosis: Accurately locate the root cause of the problem and provide a basis for maintenance.
Equipment selection: Choose the most suitable equipment according to actual needs.
How can we do better?
To better conduct volt ampere characteristic testing, the following points need to be noted:
Select appropriate testing equipment: Choose a suitable volt ampere characteristic tester based on the type and accuracy requirements of the tested equipment. The professional equipment provided by Wuhan UHV Power Technology Co., Ltd. can meet the needs of different scenarios.
Standardized operating procedures: Strictly follow the testing procedures to ensure the accuracy of data.
Deep understanding of data: It is not just about obtaining data, but also about combining theoretical knowledge and practical experience to conduct in-depth analysis of test results.
Combining other detection methods: combining the results of volt ampere characteristic testing with other detection methods (such as insulation resistance testing, dielectric loss testing, etc.) to form a more comprehensive diagnostic report.
Pay attention to the latest technological trends: Keep up with the latest developments in the industry, such as the development of smart grid technology, which also puts higher demands on the assessment of power equipment status.
Through the professional equipment and technology provided by Wuhan UHV Power Technology Co., Ltd., we can more accurately and efficiently grasp the "personality" of power equipment, and safeguard the safe operation of power equipment.
Frequently Asked Questions (FAQ)
What equipment is the volt ampere characteristic tester mainly used for? Answer: Mainly used for performance testing and fault diagnosis of various electrical equipment such as transformers, mutual inductors, motors, generators, etc.
What safety precautions should be taken when conducting volt ampere characteristic testing? Answer: It is necessary to strictly comply with the power safety regulations, ensure that the operators have the corresponding qualifications, and the testing process should be carried out under the guidance of professional personnel, and protective measures should be taken.
Why is the volt ampere characteristic the "fingerprint" of a device? Answer: Because each device has a unique material, structure, and manufacturing process, its volt ampere characteristic curve is unique and can reflect the individual characteristics and internal state of the device.
What could be the possible reason for the abnormality in the volt ampere characteristic test results? Answer: It may be due to internal short circuits, open circuits, inter turn short circuits, changes in iron core saturation, insulation aging, and other issues within the device.
What are the advantages of Wuhan UHV Power Technology Co., Ltd. in the field of volt ampere characteristic testing? Answer: Wuhan UHV Power Technology Co., Ltd. has advanced testing technology and rich industry experience, providing high-precision and high reliability testing equipment, and can provide customers with professional solutions and technical support.
