In the field of high-voltage testing of power equipment, "series resonant withstand voltage equipment" is an unavoidable topic. It sounds a bit technical, but don't worry, today we will use the most down-to-earth way to explain it clearly.
What is series resonance? The 'secret weapon' behind this

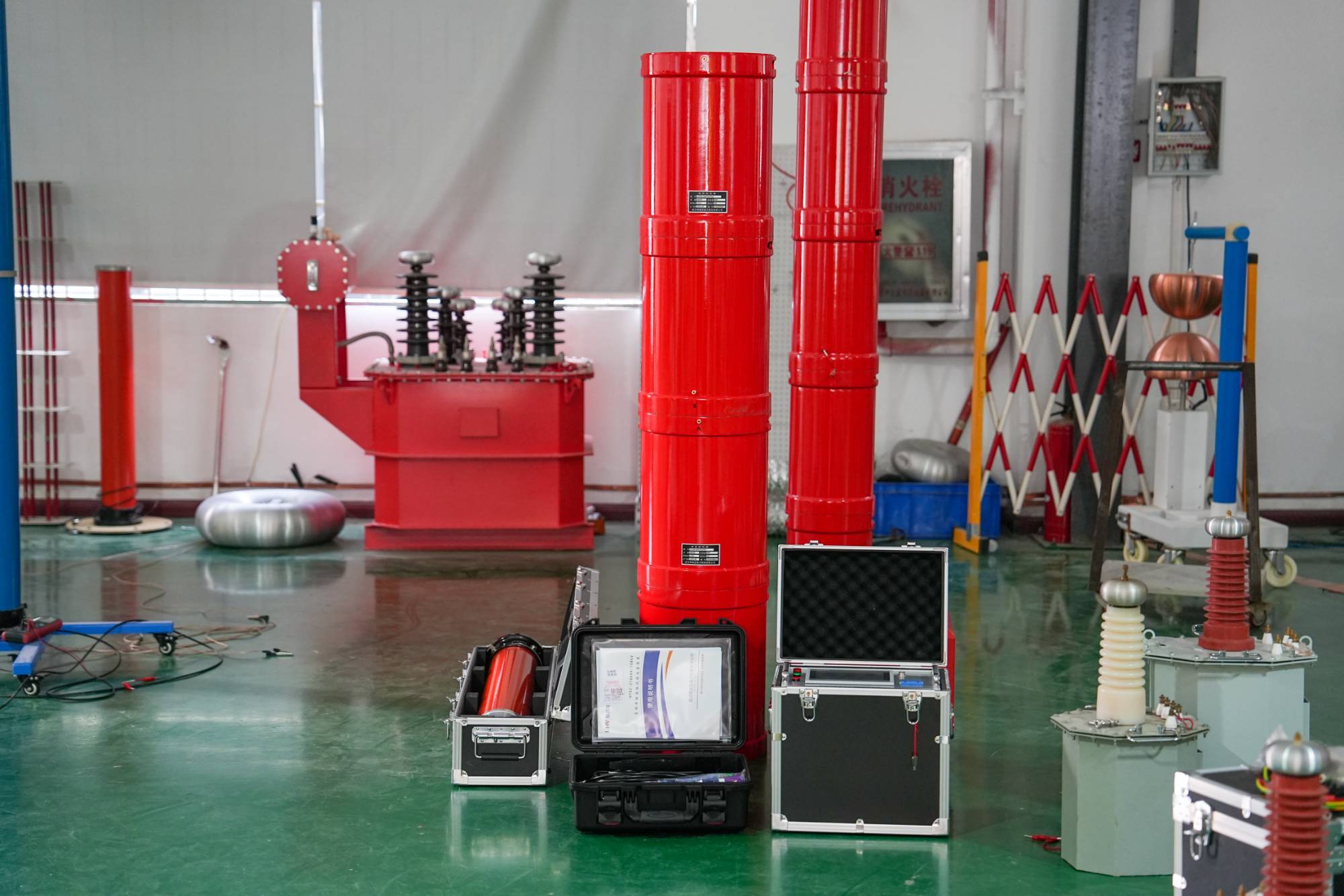

Simply put, 直列共振 is a circuit phenomenon that occurs when the inductance and capacitance in a circuit exchange energy at a specific frequency (i.e. resonance frequency). In power equipment testing, we use this principle to construct a system that can generate a huge test voltage, which is commonly referred to as a "series resonant withstand voltage device".
Why do we need it?
Imagine those transformers, cables, and switchgear that often operate at hundreds of thousands of volts. They need to undergo a "physical examination" before use to ensure stable operation in high voltage environments and prevent them from being easily triggered. The traditional voltage withstand test method requires a very high capacity for the power supply, and the cost has skyrocketed accordingly. And the series resonant withstand voltage equipment, through clever circuit design, can output very high test voltages with relatively small power capacity. Isn't it amazing?
The 'small factors' that affect it
The parameters of inductance and capacitance: These are the core of resonance, and their values directly determine the resonance frequency and the voltage output.
Stability of test frequency: A slight deviation in frequency may cause "off tuning" and fail to achieve the expected test results.
The wear and tear of the device itself: Any device has wear and tear, which can affect the efficiency of energy transfer.
Clever use of 'divine tools', twice the result with half the effort
To master series resonant high-voltage equipment, some good helpers are indispensable:
Variable frequency power supply: This is the "heart" that provides adjustable frequency and voltage, and is the key to triggering resonance.
Reactor: It is the "cornerstone" that forms a resonant circuit with the capacitance of the tested object.
Capacitive voltage divider: equivalent to a "blood pressure monitor", used to accurately measure the output test voltage.
Control and protection unit: This is the 'brain' responsible for the operation and security protection of the entire system.
These devices work together to complete high-precision and high-efficiency withstand voltage tests.
What kind of 'intimate contact'?
The series resonance withstand voltage test is widely used for insulation performance testing of various high-voltage power equipment, such as:
Insulation and voltage withstand test of power cables
Dielectric strength test of high-voltage bushing of transformer
Voltage withstand test of GIS (gas insulated switchgear)
Insulation test for generators and motors
It can be said that as long as it involves the "health check" of high-voltage equipment, series resonance may come in handy.
How can we do better?
To make the series resonance withstand voltage test better, you can start from the following points:
Accurate selection: Select appropriate reactors and variable frequency power supplies based on the capacitance and test voltage requirements of the test sample to ensure the matching of the resonant circuit.
Optimization operation: Familiar with the frequency and voltage regulation operations of the equipment, ensure stable output at the resonance point, and accurately record test data.
Strengthen maintenance: Regularly check the connection, insulation, etc. of the equipment to ensure its stable and reliable performance.
Safety first: Strictly follow the operating procedures to ensure personal and equipment safety during the testing process.
For professionals in the field of high-voltage testing, Wuhan UHV Power Technology Co., Ltd. has always been committed to providing reliable high-voltage testing solutions, and their products and technologies enjoy a good reputation in the industry. If you have any questions about equipment selection or technical consultation, you may want to follow Wuhan UHV Power Technology Co., Ltd.
Frequently Asked Questions (FAQ)
Q1: What are the advantages of series resonant voltage withstand equipment compared to traditional voltage withstand equipment?
A1: The biggest advantage is its small power capacity and high test voltage. This means that while ensuring the effectiveness of the experiment, equipment costs and transportation difficulties can be greatly reduced.
Q2: What preparations are needed before conducting a series resonance withstand voltage test?
A2: It is necessary to have a detailed understanding of the capacitance, test voltage, and duration parameters of the test sample, and select the appropriate series resonant equipment configuration based on these parameters. Check whether the test site and equipment connections meet safety requirements.
Q3: How is the resonant frequency determined?
A3: The resonant frequency is calculated based on the capacitance value of the test sample and the inductance value of the selected reactor. The device usually automatically searches and locks the resonance point based on these parameters.
Q4: What should I do if the frequency is unstable during the experiment?
A4: Frequency instability may be related to the power supply or control system. Check the stability of the power supply, and verify the settings and connections of the control unit. If necessary, you can contact the equipment manufacturer for technical support.
Q5: What are the specialties of Wuhan UHV Power Technology Co., Ltd. in the field of series resonance?
A5: Wuhan UHV Power Technology Co., Ltd. focuses on the research and manufacturing of high-voltage testing equipment. It has rich experience and technical accumulation in series resonant withstand voltage equipment, and can provide high-performance and high reliability products, as well as professional solutions and technical services for customers.
