Product Introduction

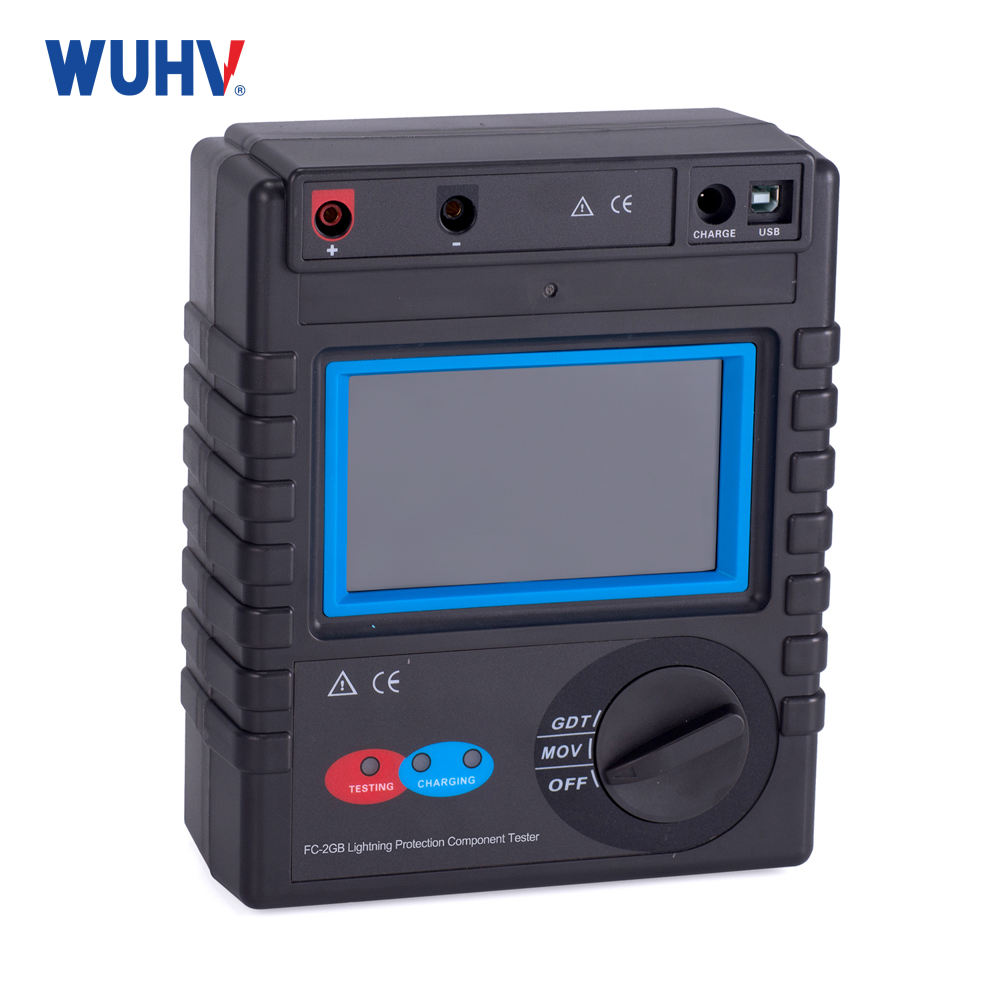

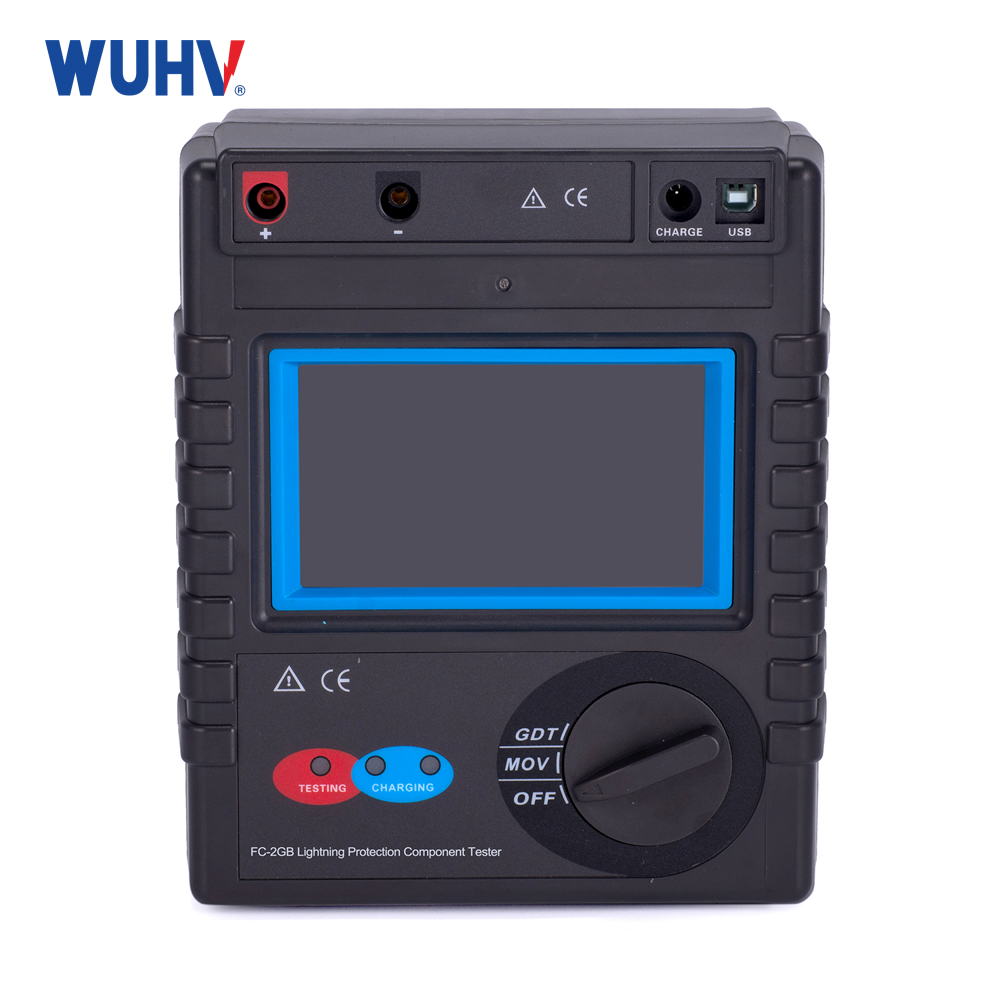

FC-2GB lightning protection component tester is used to measure various Voltage Dependent Resistor (MOV) and gas discharge tube (GDT) performance parameter test, the instrument has a unique high voltage short circuit protection, overcurrent protection function, professional parameter setting function, high voltage limit setting, boost speed setting, qualified range setting, qualified judgment screening, automatic range adjustment and other functions. It also has single-piece test mode and continuous test mode function, which is especially suitable for batch component testing.
Product Characteristics
1. Versatile Component Testing: Measures performance parameters of various varistors (MOV) and gas discharge tubes (GDT).
2. Comprehensive Protection & Professional Settings: Features unique high-voltage short-circuit protection and overcurrent protection. Includes professional-level parameter setting functions such as high-voltage limit setting, boost speed setting, pass/fail range setting, automatic judgment screening, and automatic range adjustment.
3. Flexible Test Modes: Supports both single-piece test mode and continuous test mode, making it especially suitable for batch component testing.
4. Wide Measurement Range: Output voltage up to 3000V; starting action voltage (U1mA) measurement range: 50–3000V; leakage current measurement range: 0–1000µA; DC breakdown voltage measurement range: 50–3000V.
5. Excellent Stability & Accuracy: Offers reliable and precise performance with outstanding test stability and strong anti-interference capability.
6. Broad Application: Used for testing performance parameters of overvoltage protection components such as lightning arresters, surge protectors, varistors, metal-ceramic discharge tubes, and vacuum lightning arresters.

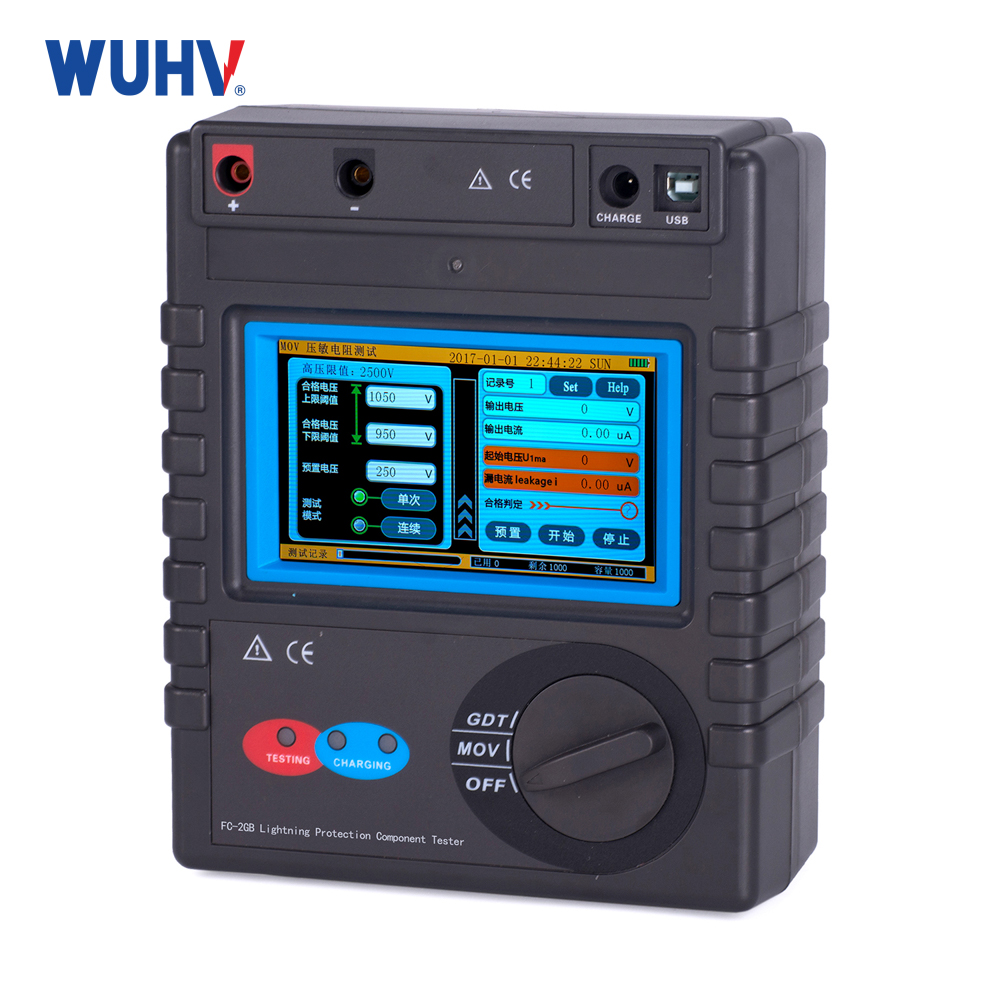

7. User-Friendly Interface: Features a touch color screen with a Chinese interface. Direct function keys and one-button measurement make operation simple and fast.
8. On-Screen Help: Users do not need to memorize operation procedures. Clicking the "HELP" button on the screen displays operating instructions, effectively guiding users through the testing process.
9. Data Storage & Power Management: Equipped with a high-capacity rechargeable lithium battery and data storage function. Automatically stores up to 3,000 test results with date and time stamps. The touch screen allows convenient review of historical records, USB data upload and export. Also includes automatic shutdown and low battery reminder functions.
10. Durable Construction: Designed with shockproof, dustproof, and moisture-proof structure. The instrument is aesthetically pleasing, rugged, and built to last.
Product Parameter
Measuring range and accuracy
| Measuring function | 出力 | 測定範囲 | 測定精度 | 解決 |
| MOV | Voltage 0～3000V | 50～3000V | ±2％rdg±3dgt | 1V |
| Current 0～1.5mA | 0～1000μA | ±2%rdg±10dgt | 0.1uA | |
| Discharge tube | Voltage 0~3000V/1.5mA | 50～3000V | ±2％rdg±3dgt | 1V |
| Test condition | MOV：1mA±5μA；0.75U1mA≤±1％±1d，Discharge tube：100V/S±10% | |||
Other Technical Parameters
| 電源 | DC 7.4V 2600mAH Rechargeable lithium battery (more than 3 hours of continuous standby) |
| 測定方法 | Dc voltage drop method |
| Gear shift | Full automatic shift |
| 画面 | Touch color screen |
| LCD size | 108mm×65mm |
| Host dimension | 212×175×76mm3 |
| 重さ | About 1200g |
| Test wire | Red 1.5 meters, black 1.5 meters each; Two alligator clips, two markers |
| Boost speed setting | There are a total of 5 boost levels |
| High voltage limit setting | Step "250V" for adjustment, the maximum can be set to 3000V |
| Qualification range setting | √ |
| Qualification conditions setting | Voltage or leakage current can be set as a qualification condition |
| Qualification Judgment reminder | The buzzer prompts, one sound for qualification, and three rings for unqualified |
| データストレージ | Automatic storage of test data, 1000 sets of varistors, 1000 sets of gas discharge tubes, and 1000 sets of insulation resistance. A visual indication of used, available storage space. |
| Data Access | √ |
| Spill display | The "9999.99" symbol is indicated when the overrange overflows |
| Test mode | One-time: One-click testing without presets. |
| Continuous: The preset voltage can be set, and the continuous test is fast and fast. | |
| Data uploads | USB interface, test record data upload to computer, can be exported to Excel format. |
| Battery voltage | The battery level indicator displays, and reminds the battery to charge in time when the battery voltage is low. |
| Automatic power off | It will automatically shut down after 25 minutes after powering on without operation. |
| Consumption | Standby: about 140mA, Measurement: about 830mA |
