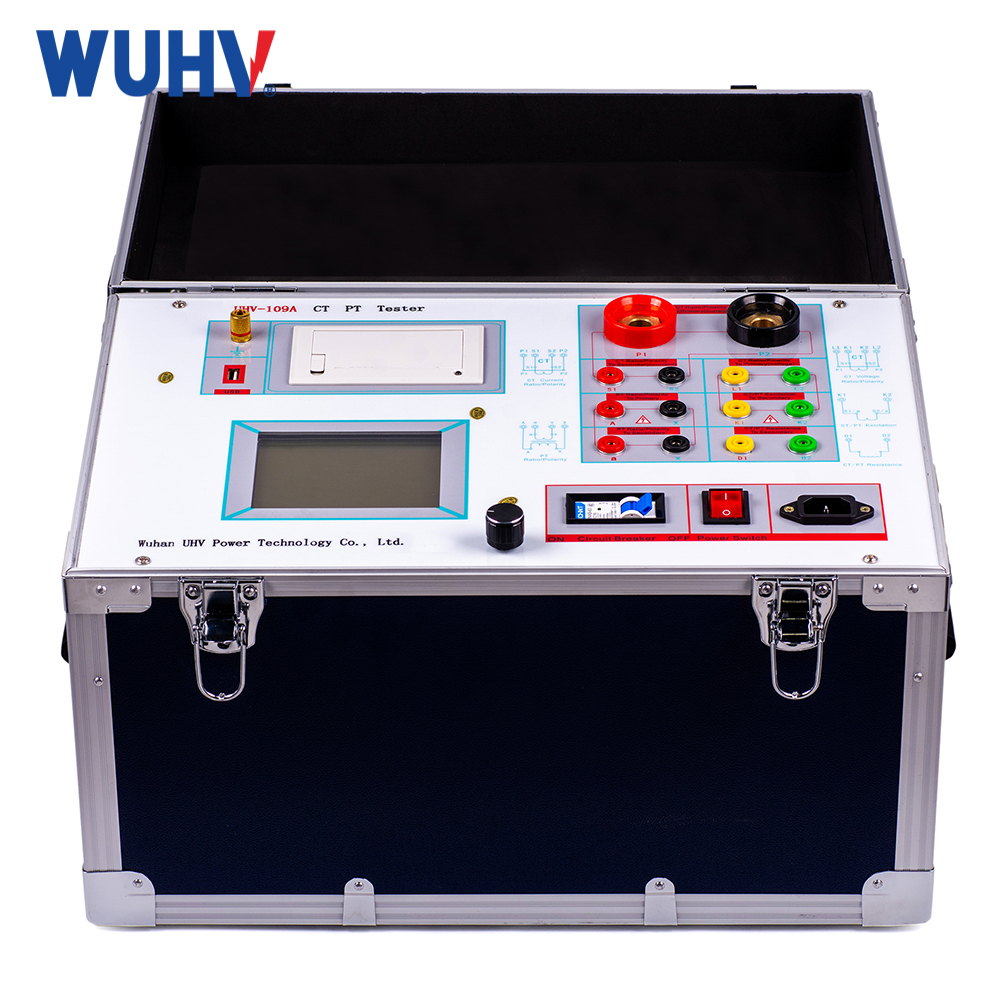

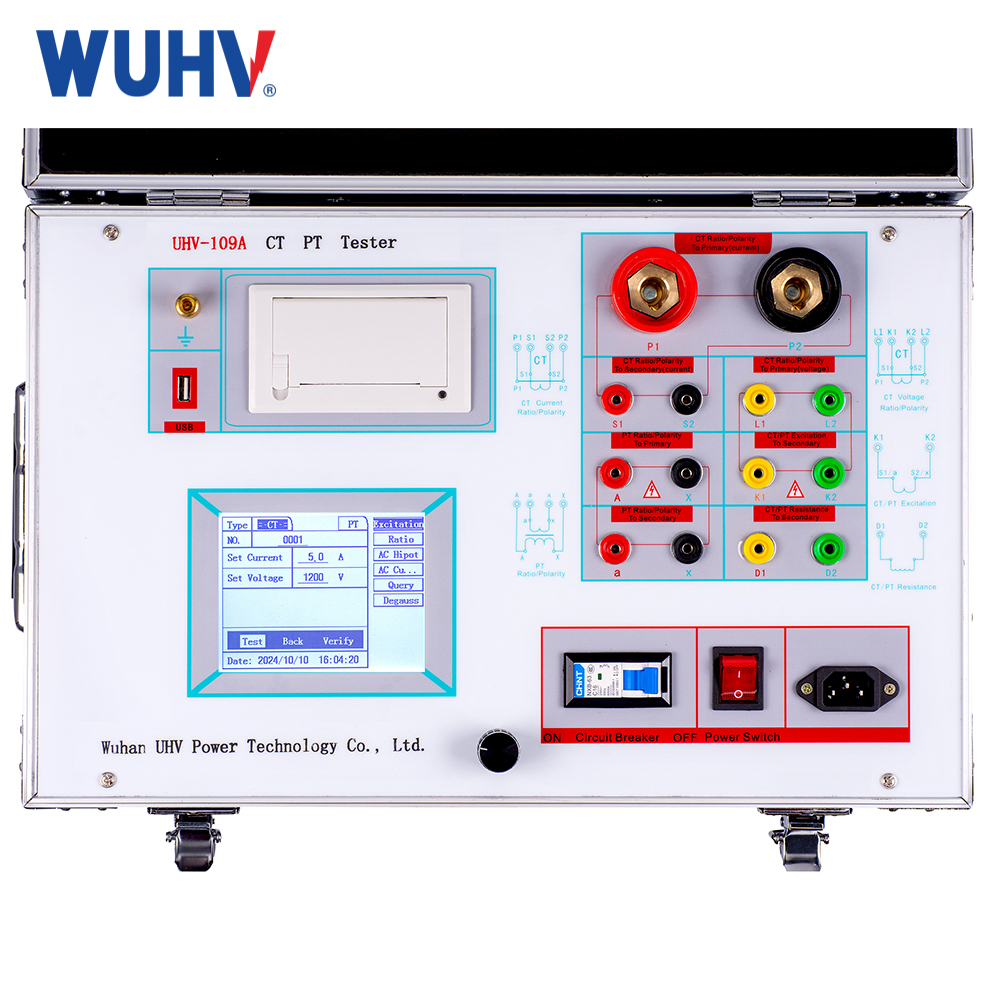

Product Introduction
It can perform automated laboratory level verification of protection level (P level) and metrology level CT/PT in the on-site environment, with single machine operation (zero external attachments), automatic inflection point detection, 5%/10% error curve generation, and reporting functions in accordance with GB 20840.3-2013/IEC standards. Its portable design with a weight of ≤ 22kg integrates a thermal printer for real-time on-site reporting, 3000+battery supported test records, and one click USB Word report generation, reducing debugging time by 70% while ensuring practical accuracy.
製品の特徴
1、Supports CT & PT detection
2、Complies with GB 20840.3-2013 & GB 20840.2-2014
3、Standalone operation—no additional equipment needed
4、Built-in fast micro printer for instant on-site reports
5、User-friendly intelligent controller
6、Large LCD with graphical interface
7、Auto-calculates CT/PT excitation turning point per standards
8、Generates 5% & 10% error curves automatically
9、Stores 3000 test sets with power-off protection
10、USB data transfer & PC-compatible Word report generation
11、Portable design (<22kg) for field testing
技術的パラメータ
The main parameters
| Item | パラメーター | |
| 電源 | AC220V±10% 、50Hz | |
| 装置出力 | 0 ~ 2500Vrms, 5kVA (Max set value 20A) | |
| 大電流出力 | 0~1000A | |
| Excitation precision | ≤0.5%（0.2%* read +0.3%* range) | |
| 二次 winding resistance 測定 | 範囲 | 0.1～300Ω |
| 精度 | ≤0.5%（0.2%* read +0.3%* range) | |
| Secondary actual load 測定 | 範囲 | 5～500VA |
| 精度 | ≤0.5%（0.2%* read+0.3%* range) ± 0.1VA | |
| 位相測定 (Angle difference) | 精度 | 4min |
| 解決 | 0.1分 | |
| Ratio error | 精度 | 0.05% |
| CT Turns Ratio 測定 | 範囲 | ≤25000A/5A（5000A/1A） |
| 精度 | ≤0.5% | |
| PT Turns Ratio 測定 | 範囲 | ≤500kV |
| 精度 | ≤0.5% | |
| Work condition | Temperature：－10℃ ～ 40℃，Humidity：≤90%，Altitude：≤1000m | |
| サイズ | 410mm×260mm×340mm | |
| 重さ | ≤22kg | |
