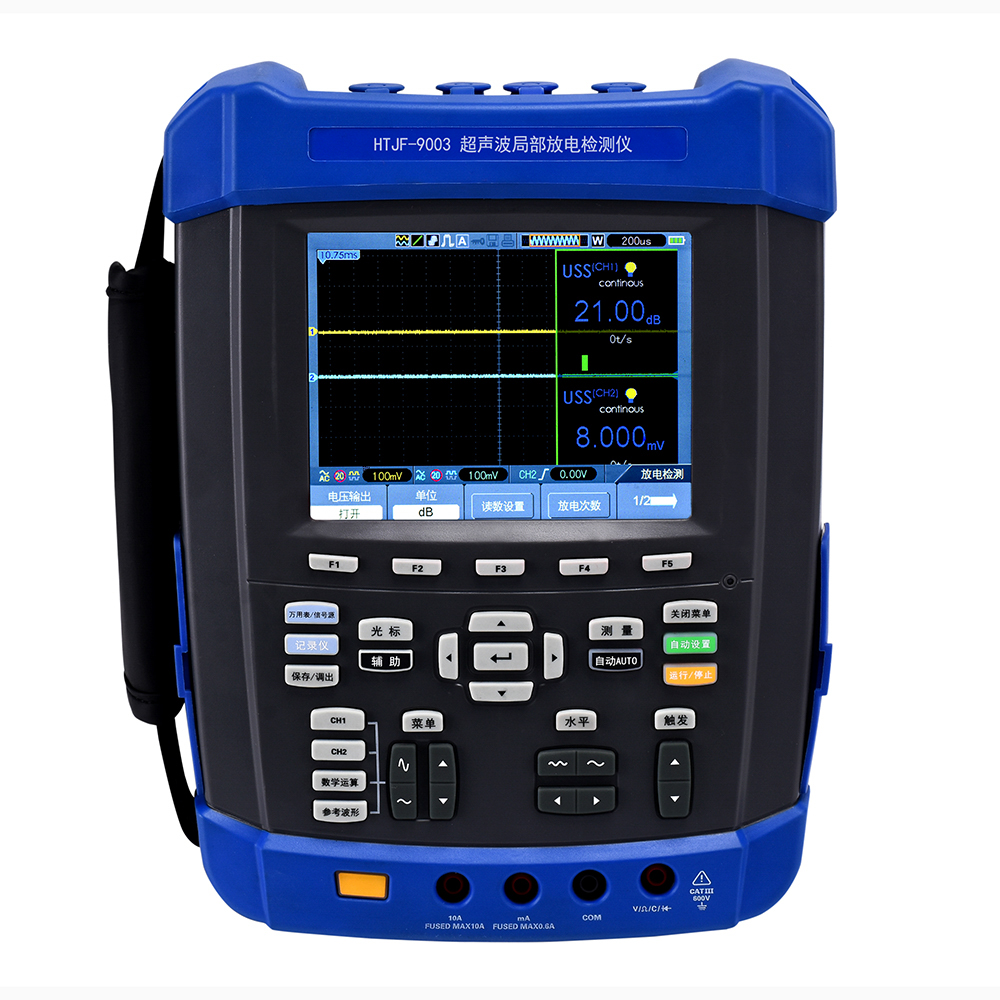

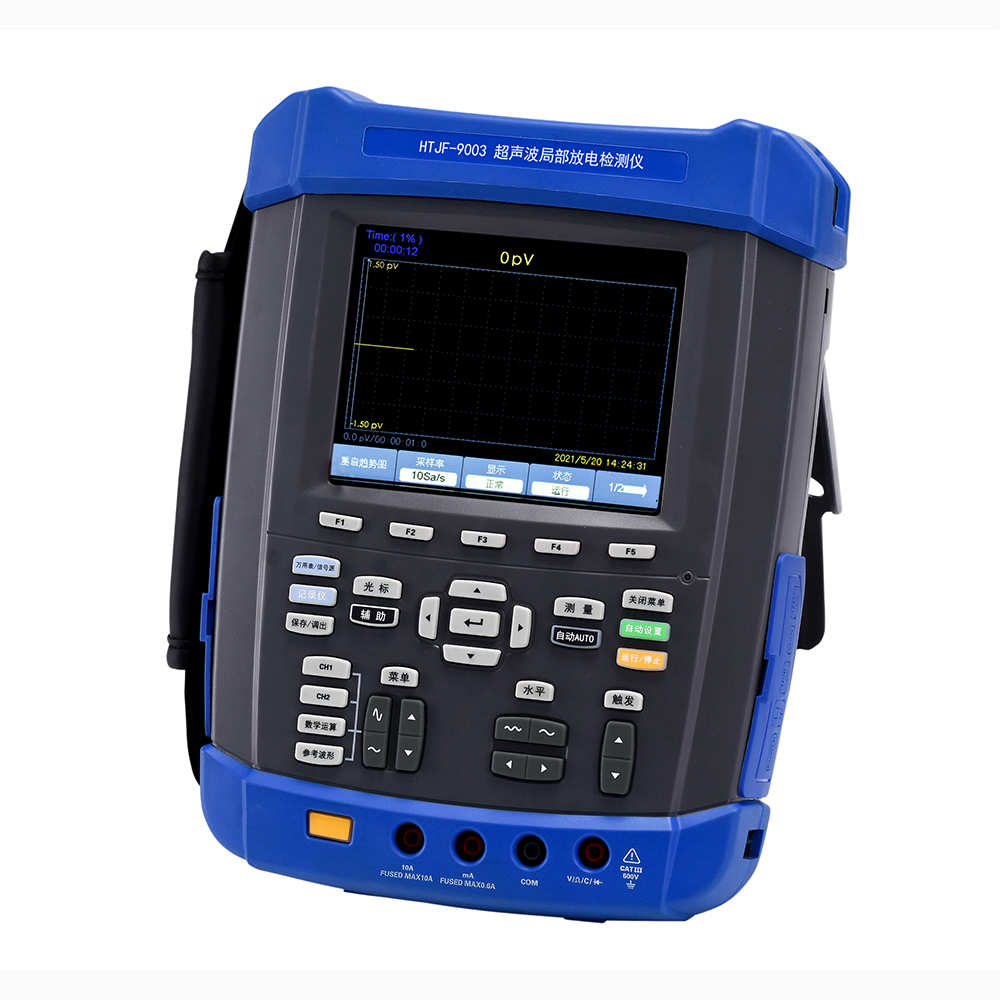

    UHV-9003 Portable Ultrasonic PD Detector

    UHV-9003 Handheld Ultrasonic partial discharge detector is mainly used for Receive the ultrasonic signal generated by partial discharge to judge the existence and location where the partial discharge occur from switchgear, transformer, GIS etc. It is composed by: Handheld Ultrasonic PD Detector- main host, Composite TEV Sensor, Ultrahigh Frequency Sensor, Ultrasonic Sensor, High-frequency current

    Product Details of UHV-9003 Portable Ultrasonic PD Detector

    PD Detector_01


    Technical parameters

    TEV measurement

    Sensor

    capacitive

    Measuring range

    0 60dBmV

    Resolution ratio

    1dB

    Error

    ± 1dB

    Detection bandwidth

    5 ~ 70MHz

    Maximum pulse/period

    655

    Threshold adjustment range

    357dB

    High-frequency current transformer

    Detection frequency band

    10kHz30MHz

    Signal transmission mode

    50 Ω coaxial cable

    Detection sensitivity

    10pC

    Ultrasonic transducer

    Measuring range

    -7dBμV68dBμV

    Resolution ratio

    1dB

    Error

    ± 1dB

    Sensor sensitivity

    - 65dB (0dB = 1volt/μbar RMS SPL)

    Sensor center frequency

    2050kHz

    Sensor diameter

    no greater than 50 mm

    Heterodyne frequency

    38.4kHz

    Uhf sensor

    Detection frequency band

    300MHz1.5GHz

    Signal transmission mode

    50 Ω coaxial cable

    Detection sensitivity

    1dB

    Gain

    65dbm

    Using the environment

    Altitude

    ≤ 3000m

    Environment temperature

    -2060

    Relative humidity

    ≤ 95%

    Hardware requirements

    Shell

    with a protective case, the protection grade should be up to or better than IP53

    Connector

    headphone jack, low voltage dc charger input, external ultrasonic sensor input

    Weight

    > 3 kg

    Display

    LED display, and can display battery status



    Nickname: PD Detector ; Ultrasonic pd detector ; Portable PD Detector ; Portable PD Tester




    Feature:

    1.The system uses multi-level detection and frequency reduction technology to reduce the frequency of the discharge signal. At the same time, the high-speed AD conversion circuit is used to complete the digitization of the signal, and the reliability of the detected data is ensured through interference signal processing methods such as digital signal processing and adaptive filtering.



    2. By collecting different signals generated by partial discharges in different high-voltage equipment, the live state of the equipment can be quickly charged.



    3. The instrument can be installed and tested in the running state of the device, without any impact on the normal operation of the device.
