What is the principle of thefrequency modulation series resonance test device? Wuhan UHV specializes in the production ofseries resonance, with a wide range of product selection and professional electrical testing. To findseries resonance, choose Wuhan UHV.

Thefrequency modulation series resonance test device applies the principle of series parallel resonance. By adjusting the output frequency of the variable frequency controller, the inductance L of the reactor in the circuit and the capacitance C of the test sample resonate, and the resonant voltage is the voltage applied to the test sample. The power supply is provided through the frequency modulation controller, and the test voltage is initially boosted by the excitation transformer to apply high voltage to the reactor L and the test sample CX. By changing the output frequency of the frequency modulation controller, the circuit is in series resonance state; The resonant frequency of the circuit depends on the capacitance CX of the test sample and the inductance L of the reactor. Adjust the output voltage of the variable frequency controller to achieve the required voltage value of the high voltage on the test sample.

Characteristics offrequency modulationseries resonance test device

1. The large screen displays test data and test status, and has real-time operation step prompt function

2. Able to flexibly adjust experimental voltage, frequency range, and pressurization time

3. The test results can calculate the capacitance of the test sample

4. Equipped with computer communication interface for easy communication and management of experimental data

5. Small size, light weight, and easy operation

6. High resolution, frequency resolution of 0.001HZ

7. High safety and reliability, the system has overcurrent, overvoltage, and discharge protection functions, which can effectively protect personal and equipment safety. The test results can be printed and upgraded with software

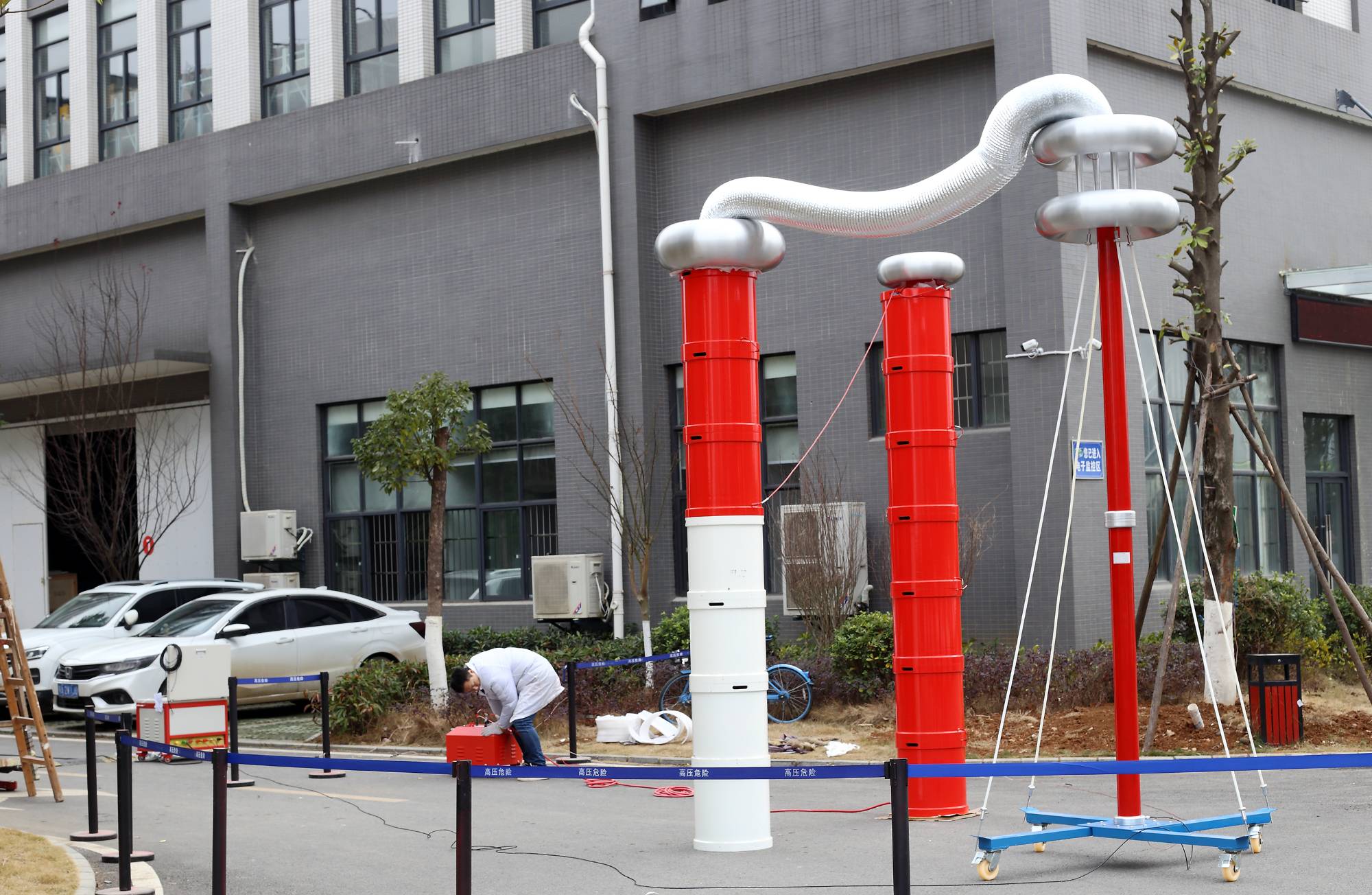

Complete set of frequency modulation series resonance test device

Frequency modulation power supply - can change both its output frequency and output voltage.

Excitation transformer - plays a role in coupling signals and voltage conversion, and increases voltage according to its own changes.

Reactor - connected in series with the test sample to form an LC series resonant circuit.

Capacitive voltage divider - measures the voltage on the test sample and feeds it back as a sampling signal to the frequency modulation power supply.

Compensation capacitor - compensates for small capacitance of the test sample and adjusts the frequency of the test sample.
