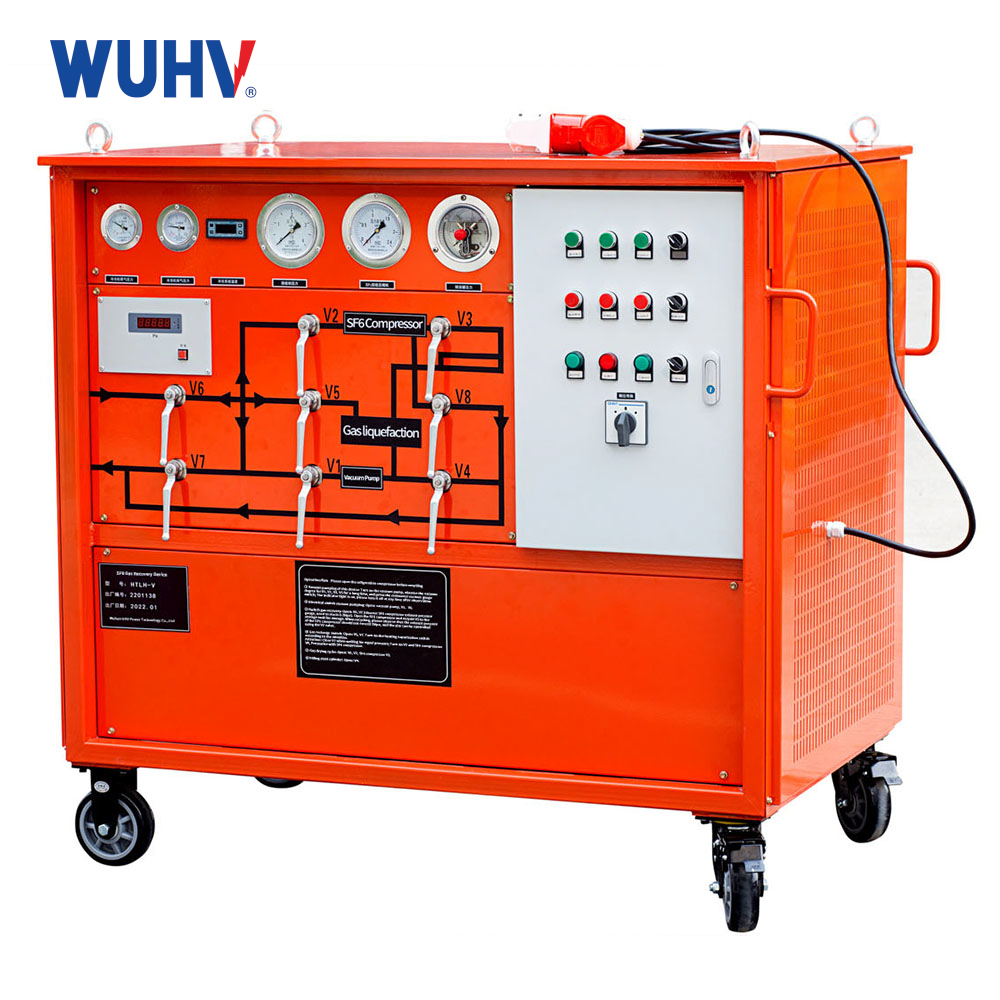

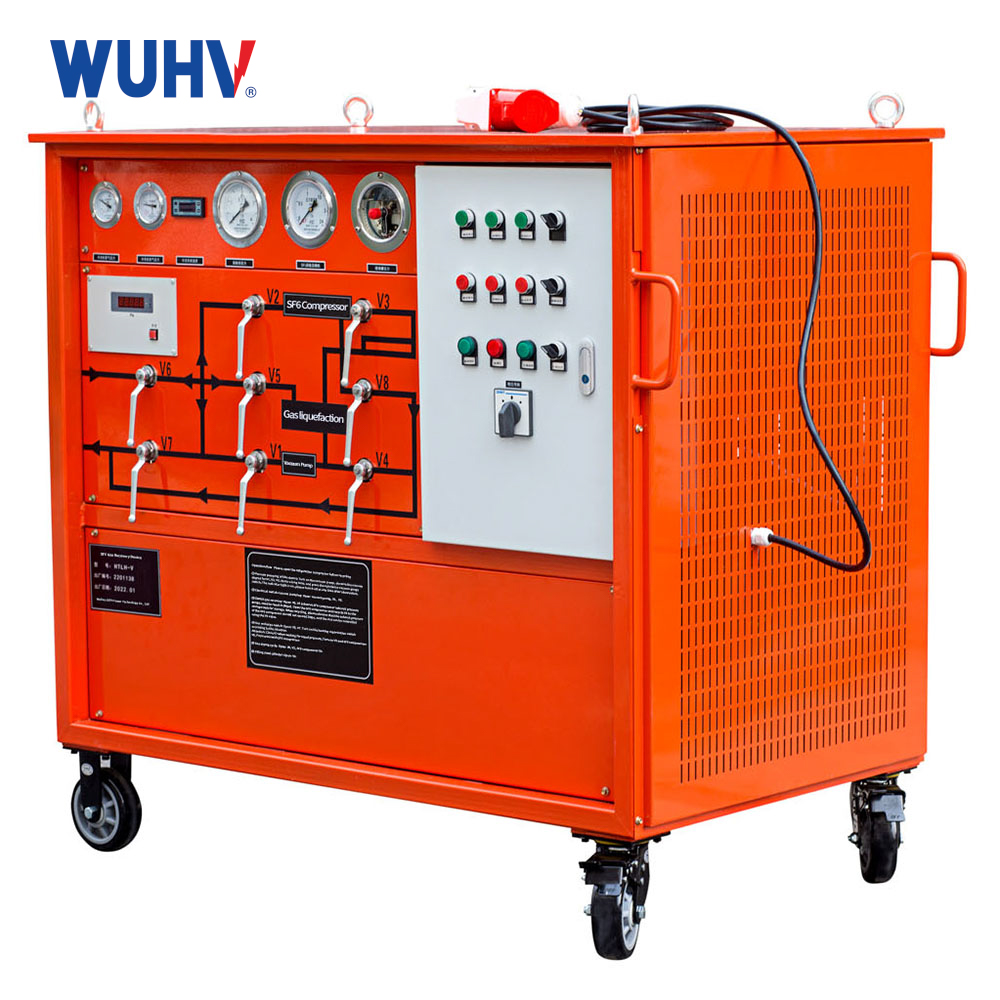

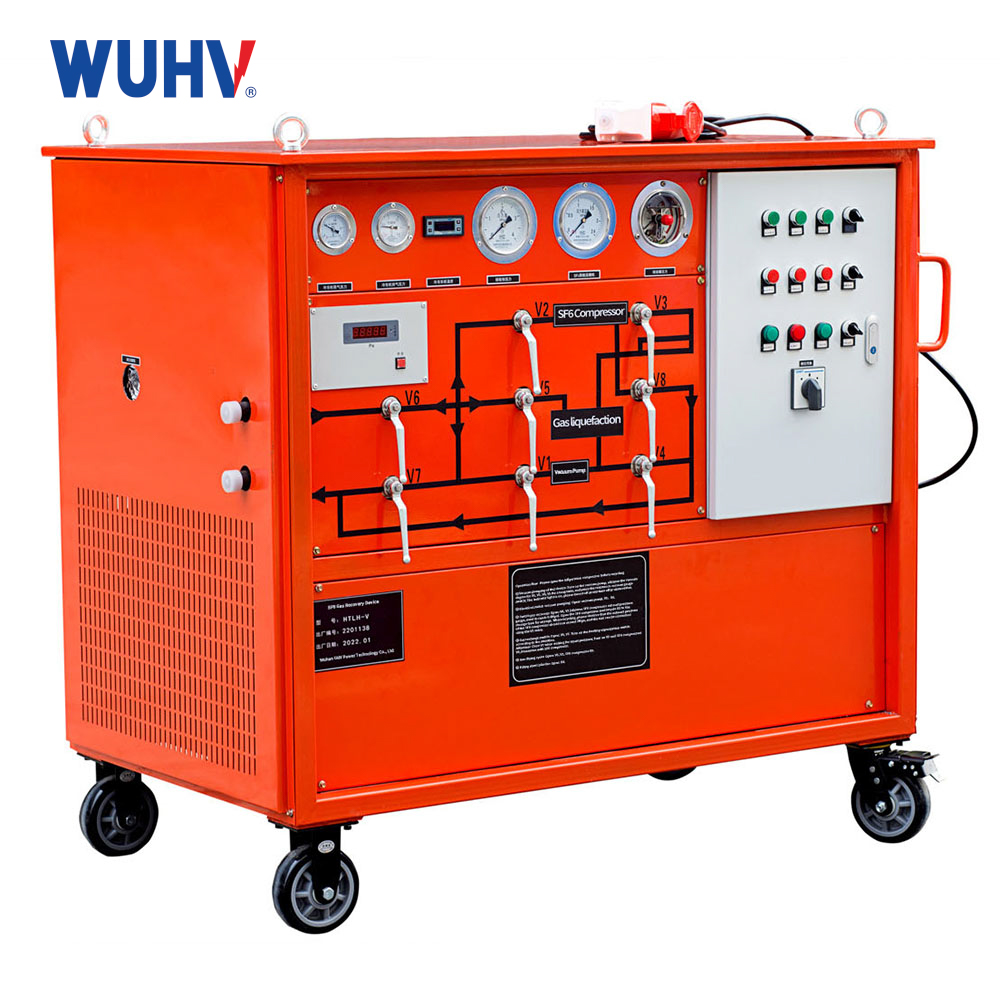

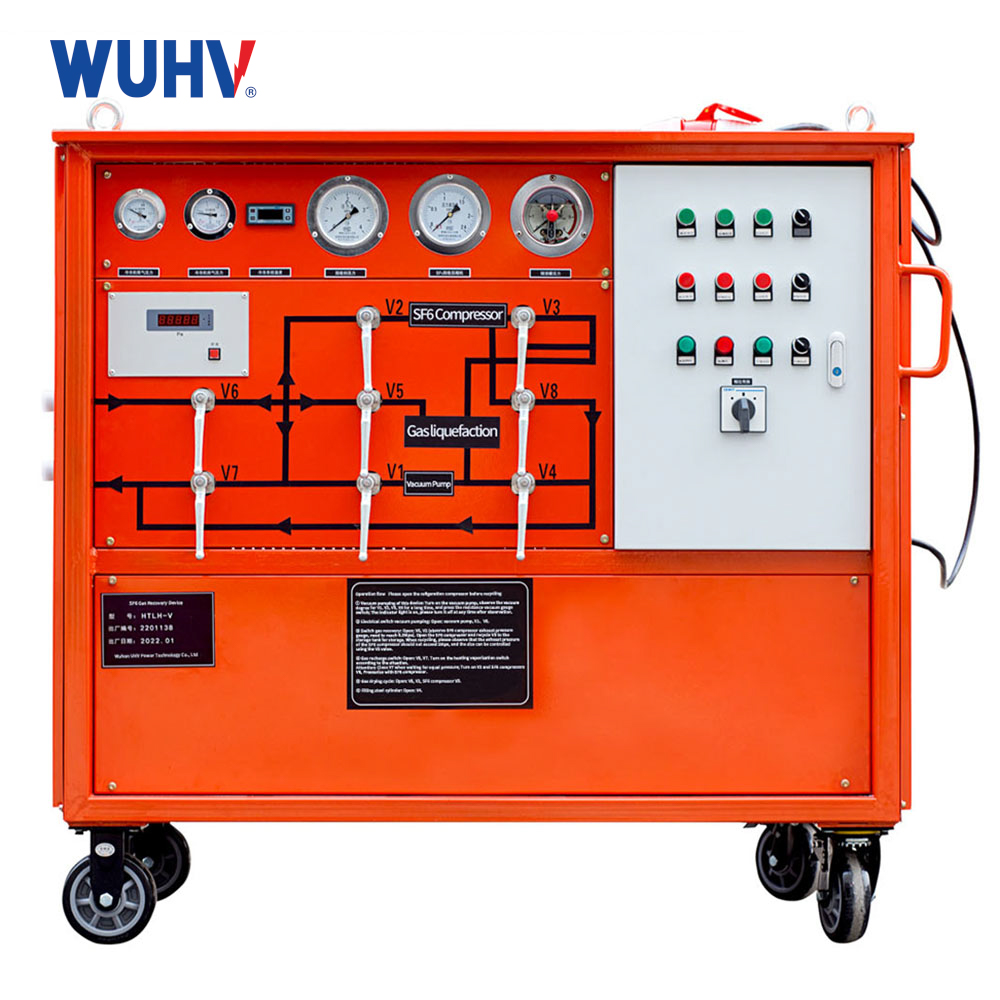

2.1Main component performance parameters
NO | Index name and unit | SF6 GAS RECLAIMER | |
1 | Power AC | V | 400(threeitemsfive line, phase sequence automatic conversion) |
2 | Rated maximum gas storage pressure (20 C) | MPa | ≤4 |
3 | Ultimate vacuum | Pa | ≤10 |
4 | Device vacuum degree | Pa | In the 133 Pa pressure to maintain 24h, the vacuum value increased by 400 Pa |
5 | SF6 compressor | France Manewrop | |
6 | Compressor pumping rate | m3/h | 7m³/h |
7 | Vacuum pump | 2X-4 | |
8 | Vacuum pumping speed | m3/h | 15 |
9 | Adaptation inlet pressure recovery beginning（20℃） | MPa | 0~1.0 |
10 | Electrical Equipment Recycling final pressure（20℃） | MPa | ≤50 Kpa |
11 | After recovering oil gas control | μg/g | Domestic oil |
12 | Means annual leakage rate | % | ＜1 |
13 | Means continuous trouble-free operation time | h | ≥1000 |
14 | Cumulative operation time between failures | h | ≥5000 |
15 | Noise level | dB(A) | Machine≤75 |
16 | Theoretical capacity accumulator | KG | 50 |
17 | Liquefaction compressor refrigeration | Donper | |
18 | Freezing tank | L | 50 |
19 | Recycle gas moisture (PPM / V) after | PPM/V | 60 |
20 | After the recovery of gas oil (PPM / V) | PPM/V | 10 |
21 | Drying filtering | Vacuum heating activated regeneration | |
22 | Inflatable initial pressure (pa) | pa | ≤133 |
23 | Inflatable final pressure (mpa) | mpa | 0.8 |
24 | Inflatable rate (m³ / h) | m³/h | ≥5 |
25 | Gasification Information | Electric heating automatic temperature control | |
26 | Vehicle type | Hand push type | |
27 | Dimensions | cm | 1450×810×1200 |
28 | Total Weight | kg | 545 |
29 | cooling method | Air | cooling |
30 | filtering system | Using the United States HASON technology, three filter - can be more high removal of SF6 gas in the recovery of water, oil, particulate impurities and dust, to ensure that the recycling of SF6 gas recycling | |
2.2Condensed parameter list
model | SF6 GAS RECLAIMER |
Vacuum pumping speed (m3 / h) | 15 |
Ultimate vacuum (Pa) | 10 |
Vacuum pump | Domestic bipolar vacuum pump |
SF6recovery compressor (m3 / h) | 7 |
pressure（MPa） | 2.5 |
Compressor manufacturers | France Manewrop |
Filter particles (micron) | 0.02 |
Oil (PPM) | Efficient |
Acid value (PH) | 0.1 |
Hydrolyzable fluoride (PPM) | 0.2 |
Toxicity | 无 |
Water (PPM) | ≤60 |
SF6 Purity | ≥99.9% |
SF6 tank | 50L |
SF6 tank material | carbon steel |
Cooling System | High quality and high efficiency compressor |
filter | Original USA |
Dryer | Original USA |
Gauge | pointer |
valve | Unique technology (built butterfly sealed to ensure multiple switch does not leak) |
Nickname：SF6 Gas Recovery Filling Storage Tester，Gas Recovery Filling Tester
Feature:
1. Built in filter adsorption system, can adsorb SF6 gas impurities, moisture, decomposition products and oil, etc..
2. Integrated design and smaller size for easy movement and use.
3 .High efficiency filter maintenance free system, which greatly guarantees the quality of SF6 gas recovery.
4 .Built-in phase protector, whenever you can avoid errors due to host phase reversal concerns.
5 All electrical systems are using quality brands.
6 The quality will be greatly casters ground protection paint, and reduce the need to promote the artificial.
7 The whole machine for air cooling without external water source.
8 Built-in temperature protection system even in the -20 degrees Celsius can work under normal conditions.
9 Built in the drying heating system, can be ensured after saturation of the desiccant can be activated by the device to heat regeneration, so no need to replace the desiccant.
10 All ball valves for the sealing element with automatic compensation performance.
11 With built-in electromagnetic valve power failure protection function, prevent power vacuum pump or motor oil return killed.
